Automated Weather Stations / WEATHERPAKMarine
RETIRED ›
This product is not available for new orders.
WEATHERPAKMarine Weather Station for Marine Weather Applications
Services Available

Overview

WEATHERPAK® Marine weather stations provide professional-level meteorological measurements in a compact, rugged, and easy-to-install system. They incorporate the most advanced meteorological sensors available and support critical military, scientific and commercial operations worldwide. WEATHERPAK® Marine weather stations continue to operate where extreme temperatures, salt spray, exhaust, high winds, fog, and heavy rain are frequent.

Note: WEATHERPAK® Marine is manufactured by Coastal Environmental Systems, Inc., a Campbell Scientific company.

Benefits and Features

  • Contains all the standard meteorological sensors and minimizes exposed cables and connectors
  • Integrated GPS and compass for wind correction
  • Double O-ring seals to fully protect all electronics from the harsh marine environment
  • Constructed of Military-Standard 6061-T6 anti-corrosive aluminum; coated with a baked-on thermoplastic resin
  • Additional sensor integration via a waterproof junction box
  • Quick-release mast mount for quick removal or installation
  • Dual system options for port and starboard
  • Integrated Campbell Scientific data logger
  • Data transmission to onboard display and/or integration into ship’s network
  • Optional INTERCEPT® software and touch-screen display to help gather, organize, archive, and display data

Images

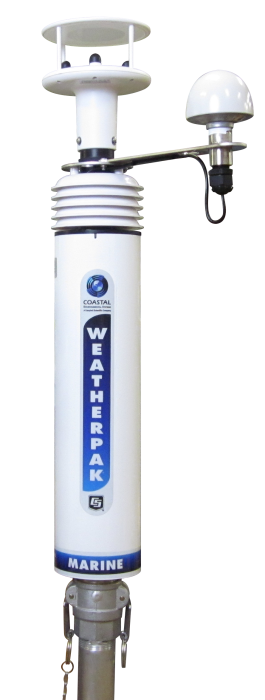

WEATHERPAK® Marine
WEATHERPAK® Marine
WEATHERPAK® Marine
INTERCEPT® software

Specifications

Communications NMEA 0183, RS-232, RS-485, TCP/IP, UHF, satellite
Power Supply Optional power cable (AC/DC)

Air Temperature
Measurement Range -35° to +70°C
Accuracy ±0.1°C at 25°C

Relative Humidity
Measurement Range 0 to 100%
Accuracy 0.5% at 25°C

Barometric Pressure
Measurement Range
  • 600 to 1100 mBar (standard)
  • 500 to 1100 mBar (optional)
Accuracy
  • 0.1% at 25°C (standard)
  • 0.01% or 0.02% at 25°C (optional)

Wind Speed
Measurement Range
  • 0 to 60 m/s (117 kts, 135 mph) standard
  • 0 to 65 m/s (optional)
Accuracy ±2%
Resolution 0.01 m/s

Wind Direction
Measurement Range 0 to 360°
Accuracy ±2%
Resolution 1°

Compass
Accuracy 1° RMS
Resolution 0.1° RMS
