Automated Weather Stations / WEATHERPAKResponse
RETIRED ›
This product is not available for new orders.

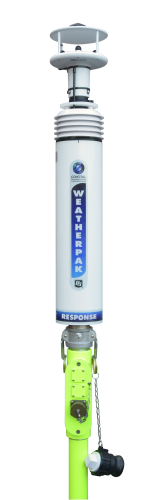

WEATHERPAKResponse Weather Station for Emergency Response Applications
Services Available

Overview

WEATHERPAK® Response weather stations are impervious to airborne chemicals and designed to be deployed directly in the hot zone. These models can be set up in less than 60 seconds, without tools, by one person wearing full protective gear. A WEATHERPAK® Response weather station can survive a 1.8 m (6 ft) drop to concrete and withstand a decontamination scrubdown, as well as many other environmental hazards.

CAMEO®/ALOHA®: registered trademarks of the US EPA and NOAA.

Benefits and Features

  • Portable or fixed options available
  • Automatic detection and display of data from up to twenty additional WEATHERPAK® Response units within range
  • Portable design ideally suited for HAZMAT response
  • Automatic updates of CAMEO®/ALOHA® and most other chemical plume modeling software
  • Optional full-color touch-screen display and INTERCEPT® software for local visualization and data collection (depending on model ordered)
  • Built-in compass for automatic alignment to true north
  • User-configurable alerts and alarms with optional INTERCEPT® software
  • Data transmission via radio (UHF or spread spectrum) to the plume model
  • No-moving-parts ultrasonic wind sensor that requires no calibration
  • Integrated Campbell Scientific data logger

Images

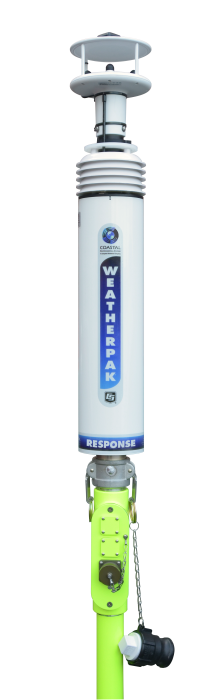

WEATHERPAK® Response
WEATHERPAK® Response
WEATHERPAK® Response
WEATHERPAK® Response
WEATHERPAK® Response tower and display
INTERCEPT® software

Specifications

Communications
  • 440 to 470 MHz radio; 1 W (domestic)
  • 2.4 GHz spread spectrum (international)
  • Serial RS-232
  • Ethernet
Power Supply
  • 10 DD batteries
  • Ethernet
  • Optional power cable (AC/DC)

Air Temperature
Measurement Range -35° to +70°C (-31° to +158°F)
Accuracy ±0.1°C at 25°C

Relative Humidity
Measurement Range 0 to 100%
Accuracy 0.5% at 25°C

Barometric Pressure
Measurement Range 600 to 1100 mBar
Accuracy 0.1% at 25°C

Wind Speed
Measurement Range 0 to 60 m/s (117 kts, 135 mph)
Accuracy ±2%
Resolution 0.01 m/s

Wind Direction
Measurement Range 0 to 360°
Accuracy ±2%
Resolution 1°

Compass
Accuracy 1° RMS
Resolution 0.1° RMS

GPS
Accuracy
  • < 5m 90% (autonomous)
  • < 4m 90% (SBAS)
PPS < ±25 ns 50%
